Hull Anodes – Zinc

Type Material Net
weight
Gross
weight
L mm L mm
A top
L mm
A bottom
W mm
top
W mm
bottom
H mm
Bera 2 Zinc 0,21 0,25 140 56 98 20 34 13

Bera 2

Material: Zinc BACNO: 110020 DWG NO: 111-501-W

Net weight: 0,21
Gross weight: 0,25

L length: 140
Top length: 56
Bot. length: 98
Top width: 20
Bottom width: 34
Height: 13

Click to see all specifications Request this anode

Bera 2 ×
Bera 5 Zinc 0,44 0,50 164 45 120 20 46 23

Bera 5

Material: Zinc BACNO: 110050 DWG NO: 111-502-W

Net weight: 0,44
Gross weight: 0,50

L length: 164
Top length: 45
Bot. length: 120
Top width: 20
Bottom width: 46
Height: 23

Click to see all specifications Request this anode

Bera 5 ×
Bera 10 Zinc 0,9 1,0 210 60 140 24 62 28

Bera 10

Material: Zinc BACNO: 110100 DWG NO: 111-503-W

Net weight: 0,9
Gross weight: 1,0

L length: 210
Top length: 60
Bot. length: 140
Top width: 24
Bottom width: 62
Height: 28

Click to see all specifications Request this anode

Bera 10 ×
Bera 20 Zinc 1,9 2,0 210 80 165 60 90 30

Bera 20

Material: Zinc BACNO: 110200 DWG NO: 111-504-W

Net weight: 1,9
Gross weight: 2,0

L length: 210
Top length: 80
Bot. length: 165
Top width: 60
Bottom width: 90
Height: 30

Click to see all specifications Request this anode

Bera 20 ×

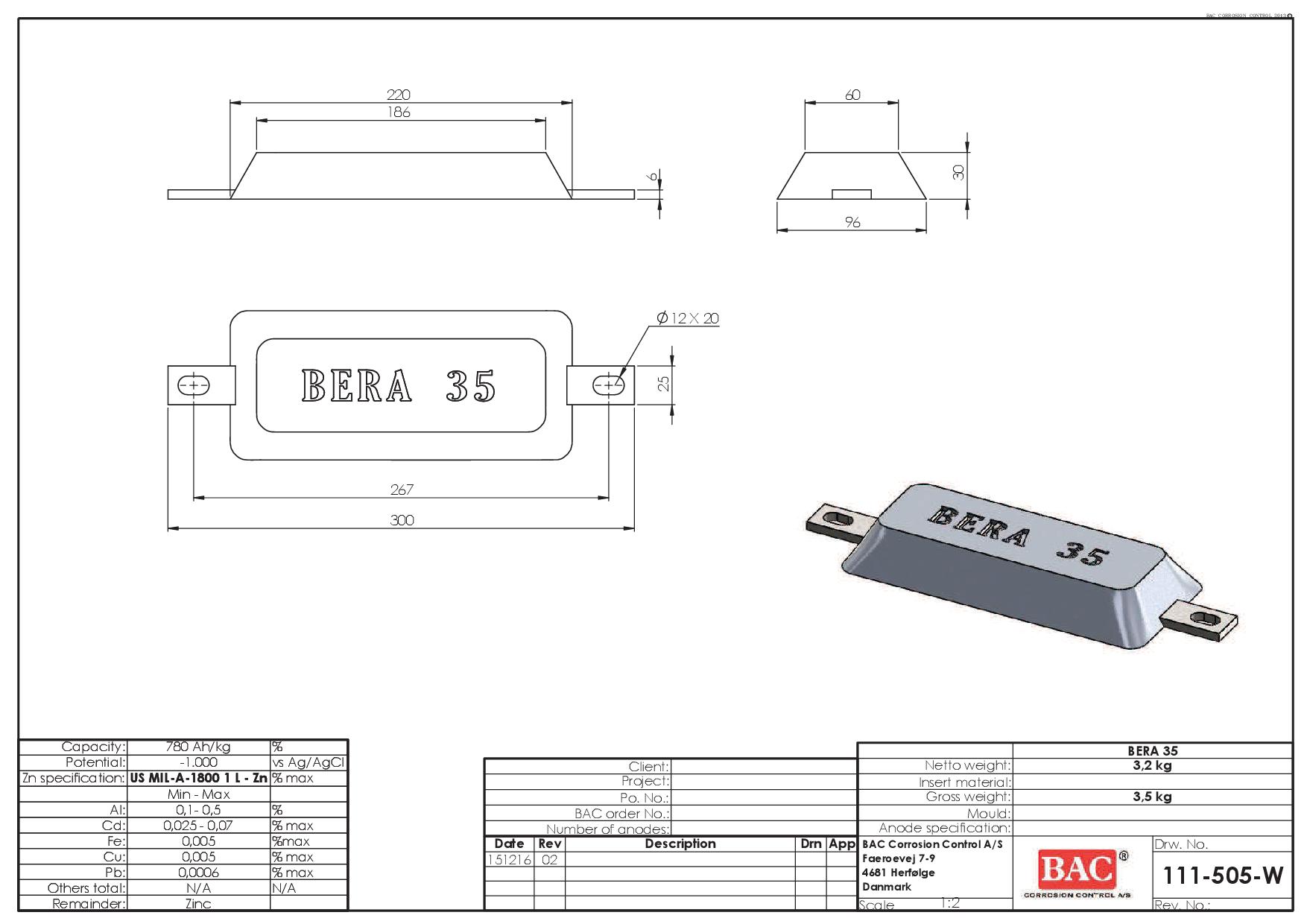

Bera 35 Zinc 3,2 3,5 300 186 220 60 96 30

Bera 35

Material: Zinc BACNO: 110350 DWG NO: 111-505

Net weight: 3,2
Gross weight: 3,5

L length: 300
Top length: 186
Bot. length: 220
Top width: 60
Bottom width: 96
Height: 30

Click to see all specifications Request this anode

Bera 35 ×
Bera 55 Zinc 5,1 5,5 350 215 260 80 113 33

Bera 55

Material: Zinc BACNO: 110550 DWG NO: 111-506

Net weight: 5,1
Gross weight: 5,5

L length: 350
Top length: 215
Bot. length: 260
Top width: 80
Bottom width: 113
Height: 33

Click to see all specifications Request this anode

Bera 55 ×
Bera 102 Zinc 9,3 10,2 450 260 350 126 150 33

Bera 102

Material: Zinc BACNO: 111020 DWG NO: 111-509

Net weight: 9,3
Gross weight: 10,2

L length: 450
Top length: 260
Bot. length: 350
Top width: 126
Bottom width: 150
Height: 33

Click to see all specifications Request this anode

Bera 102 ×
Bera 105 Zinc 9,6 10,5 445 405 220 35

Bera 105

Material: Zinc BACNO: 111050 DWG NO: 111-786

Net weight: 9,6
Gross weight: 10,5

L length: 445
Top length:
Bot. length: 405
Top width:
Bottom width: 220
Height: 35

Click to see all specifications Request this anode

Bera 105 ×
Bera 145 Zinc 13,5 14,5 438 405 220 45

Bera 145

Material: Zinc BACNO: 111450 DWG NO: 111-527

Net weight: 13,5
Gross weight: 14,5

L length: 438
Top length:
Bot. length: 405
Top width:
Bottom width: 220
Height: 45

Click to see all specifications Request this anode

Bera 145 ×
Bera 155 Zinc 14,7 15,5 700 450 590 70 116 45

Bera 155

Material: Zinc BACNO: 111510 DWG NO: 111-510

Net weight: 14,7
Gross weight: 15,5

L length: 700
Top length: 450
Bot. length: 590
Top width: 70
Bottom width: 116
Height: 45

Click to see all specifications Request this anode

Bera 155 ×
Bera 235 Zinc 21,5 23,5 1060 820 950 60 120 40

Bera 235

Material: Zinc BACNO: 112350 DWG NO: 111-526

Net weight: 21,5
Gross weight: 23,5

L length: 1060
Top length: 820
Bot. length: 950
Top width: 60
Bottom width: 120
Height: 40

Click to see all specifications Request this anode

Bera 235 ×
250/150 Zinc 4,0 4,5 320 ø 250 ø 150 25

250/150

Material: Zinc BACNO: 151150 DWG NO: 111-565

Net weight: 4,0
Gross weight: 4,5

L length: 320
Top length:
Bot. length: ø 250
Top width:
Bottom width: ø 150
Height: 25

Click to see all specifications Request this anode

250/150 ×

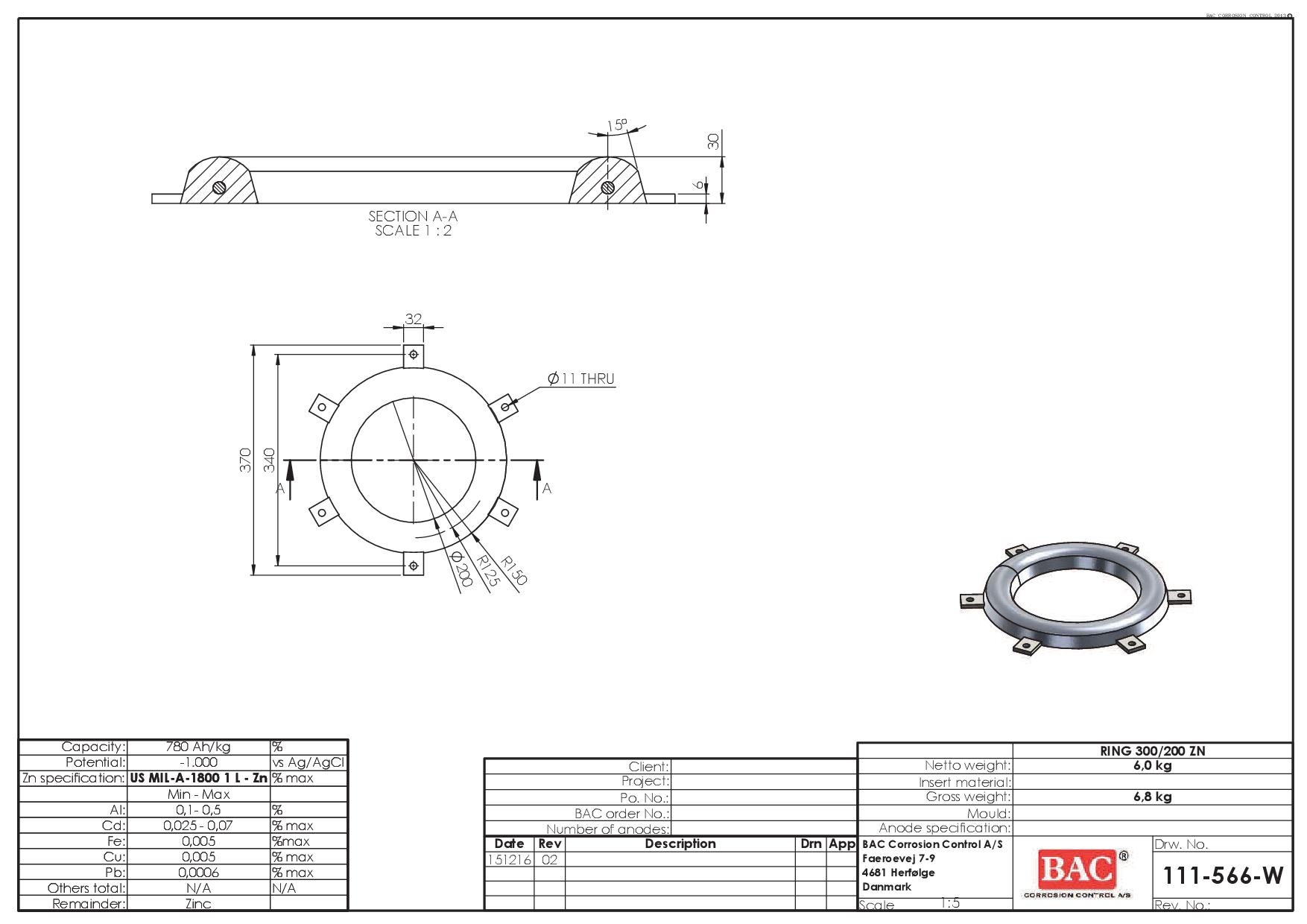

300/200 Zinc 6,0 6,8 370 ø 300 ø 200 30

300/200

Material: Zinc BACNO: 15120 DWG NO: 111-566

Net weight: 6,0
Gross weight: 6,8

L length: 370
Top length:
Bot. length: ø 300
Top width:
Bottom width: ø 200
Height: 30

Click to see all specifications Request this anode

300/200 ×
350/250 Zinc 7,0 7,8 420 ø 350 ø 250 30

350/250

Material: Zinc BACNO: 151250 DWG NO: 111-567

Net weight: 7,0
Gross weight: 7,8

L length: 420
Top length:
Bot. length: ø 350
Top width:
Bottom width: ø 250
Height: 30

Click to see all specifications Request this anode

350/250 ×
